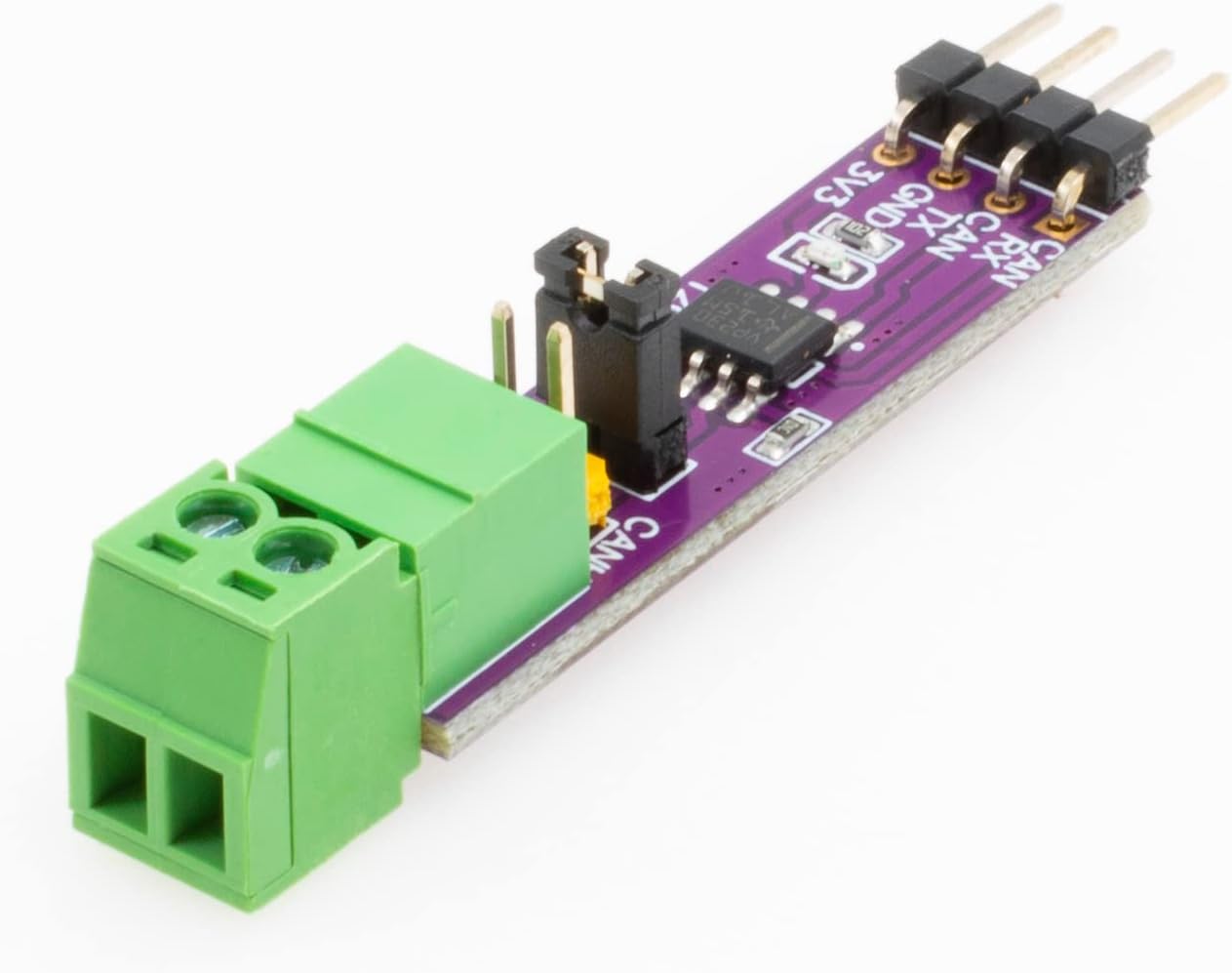

CAN HAT SN65HVD230 can-Bus transceiver Module Stably Long-Distance Communication Functions Communication Module Single Channel

Overview CAN bus can realize high reliability serial communication with its high communication rate and good anti-electromagnetic interference ability. Therefore, it has high application value in practical applications. However, with the continuous development of integrated technology, in order to save power consumption and reduce the circuit size, the Logical Electrical Level of some new CAN bus controllers adopts LVTTL, which requires a bus transceiver suitable for it. And the SN65HVD230 type circuit produced by TI solves this problem very well. Application Scenarios -Vehicles including passenger cars, trucks, ships and spacecraft -Industrial and factory automation, as well as medical, mining and laboratory equipment Dimensions 34mm(length)*10.5mm(width) Package Contents 1. CAN HAT × 1 2. Black Jumper Cap × 1

• 1.The module is fully compatible with the ISO11898 standard. High input impedance, allowing 120 nodes
• 2.Low current standby mode, typical current is 370μA
• 3.Signal transmission rate up to 1Mb/s, with thermal protection, open circuit failure protection function
• 4.With the anti-instantaneous interference and protecting the bus function
• 5.Slope control,and reduce radio frequency interference (RFI); differential receiver with anti - wide range of common - mode interference and electromagnetic interference ( EMI ) capacity
